Bone gel and papillae tunnelling for isolated intrabony defects
INTRODUCTION
Periodontitis is an inflammatory disease that leads to progressive loss of periodontal tissue characterised by radiographic bone loss or clinical attachment loss (CAL) as measured by probing (Papapanou et al., 2018).
Adequate treatment involves a stepwise approach depending on the stage of disease, primarily aimed at reducing the amount of supra- and subgingival plaque, calculus deposits, and periodontal bacterial load (Sanz et al., 2020). It initially involves behavioural changes in oral hygiene, control of modifiable risk factors, and nonsurgical debridement procedures, followed by extractions and/or surgical interventions at nonresponsive sites (Herrera et al., 2022).
Resective surgical approaches offer limited potential for clinical and radiographic restoration of lost periodontal tissue. Therefore, regenerative approaches combined with minimally invasive surgical techniques are often used instead, especially in the treatment of deep intrabony defects (Al Machot et al., 2014), which pose a high risk for periodontitis progression and tooth loss (Nieri et al., 2002).
Minimally invasive surgical techniques based on conservative flap designs minimise the extent of flap reflection and wounding and improve coagulation stability, primary closure, and space preservation. They also offer advantages in patient-oriented outcomes: reduced postoperative morbidity, shorter recovery times, and preservation of pre-existing gingival aesthetics (Kao et al., 2015).
However, when traditional papilla-preserving techniques, xenogeneic grafts, and resorbable membranes are used, primary wound closure (WC) can be maintained in the early healing phase in only about half of the cases, often resulting in biomaterial exposure (Cortellini et al., 2001).
Two surgical methods, the Entire Papilla Preservation Technique (EPP [Aslan et al., 2017]) and the Nonincised Papillae Surgical Approach (NIPSA [Moreno Rodriguez & Caffesse, 2018]), have recently been developed to avoid incising of the interdental papillae when treating deep intrabony defects.
To gain direct access to intrabony defects with NIPSA, a horizontal incision is made through the attached gingiva above the marginal bone level and a small, full-thickness flap is elevated in a coronal direction. The papillary tissue is left in its original position as a dome-like protection. When using the EPP technique, a short vertical incision is often made at an adjacent tooth or along the contralateral line angle of the same tooth, and then the papilla is tunnelled from the lateral side.
After the removal of granulation tissue, the tooth root surface facing the intrabony defect must be thoroughly debrided. The defect is then filled with a slow resorbing particulate bone graft material in compliance with the original procedural instructions. In the final step, the incision line is sutured.
While NIPSA seems to be more suitable for the anterior and maxillary region, EPP should be avoided in the anterior region because of the possible scarring (Pei, 2021). A common aspect of EPP and NIPSA is a modified nonsurgical approach (level 2) that does not involve aggressive scaling and root planing at sites with deep intrabony defects.
To prevent soft tissue collapse and improve papilla support, slow resorbing dual phase collagenated particulate bone graft substitutes were used in the original descriptions of EPP (Aslan et al., 2017, 2021) and xenogeneic bone without organic particles in the original description of NIPSA (Moreno Rodriguez & Caffesse, 2018). However, a slow resorbing bone graft substitute may interfere with wound healing and periodontal regeneration.
Recently, both EPP (Aslan et al., 2020) and NIPSA (Moreno Rodríguez & Ortiz Ruiz, 2022) were investigated in randomised controlled clinical trials comparing xenogeneic bone grafts with surgery alone (without bone graft). These trials did not clearly demonstrate the benefits of bone graft substitutes in combination with NIPSA (Moreno Rodríguez & Ortiz Ruiz, 2022) or EPP (Aslan et al., 2020), as the same clinical outcomes in terms of periodontal regeneration were obtained regardless of the application of bone graft substitutes to the defect sites.
In addition, Moreno Rodriguez and Ortiz Ruiz (2022) reported that deeper residual pockets and lower levels of new attachment formation were generally observed after the use of slow resorbing bone substitutes; however, the bone substitutes improved interproximal soft tissue volume.
The use of dual phase xenogeneic bone substitutes containing collagen, which acts as a signalling molecule, simultaneously provides a scaffold for bone regeneration and stimulates natural healing processes (Falacho et al., 2021). However, the ability of dual phase xenogeneic bone gels to maintain papillae is currently unknown and may be questionable due to the smaller size and lower proportion of bone particles, which lack the mechanical properties to support soft tissue.
To promote optimal healing and prevent papilla collapse, we aimed to evaluate the clinical performance of a pre-hydrated collagen-containing xenogeneic bone gel that contains a lower proportion of smaller bone particles than a standard bone graft. Given the widely recognised efficacy of slow resorbable particulate bone grafts used in conjunction with regenerative papillary tunnelling procedures, we developed a protocol for a noninferiority study designed to demonstrate comparable success in clinical parameter improvement following the utilisation of xenogeneic bone gel.
Our hypothesis posited that the lower 95 per cent confidence interval (CI) for the differences between the baseline and one-year results would surpass a pre-established threshold for noninferiority.
MATERIALS AND METHODS
Study design and population
The study was designed as a randomised, controlled, single-centre clinical trial. Ethical approval was obtained from the National Medical Ethics Committee (protocol no. 0120-653/2017/3), and the study was registered on ClinicalTrials.gov (NCT04782921). Before participation, all patients consented by signing appropriate forms. The study was conducted in accordance with the tenets of the Declaration of Helsinki.
Twenty individuals were meticulously chosen from a pool of 86 consecutively assessed patients seeking periodontal treatment at the Department of Oral Medicine and Periodontology, University Medical Center Ljubljana, Ljubljana, Slovenia. This selection process was conducted between January 2020 and 2021.
The inclusion criteria were: patients diagnosed with stage Ill/IV periodontitis (Tonetti et al., 2018); at least one isolated deep 3-wall intrabony defect with a partial 2-wall component on the periodontally affected tooth (Papapanou & Tonetti, 2000); predominant involvement of the interproximal region of the affected tooth with probing depth (PD) ≥ 5 mm and clinical attachment level (CAL) ≥ 6 mm; full-mouth plaque score (FMPS) [17]; and full-mouth bleeding score (FMBS) below 20% [18].
The exclusion criteria included heavy smokers (more than 10 cigarettes per day), patients with known systemic diseases, and pregnant or lactating women. In addition, inadequately endodontically treated teeth were also excluded from the study.
Initial treatment
All subjects underwent an initial phase of nonsurgical periodontal therapy, which included education and instruction on proper oral hygiene, removal of supra- and subgingival deposits with piezoelectric ultrasonic instruments (PiezoLED ultrasonic scaler with Piezo Scaler tip 203 [KaVo Dental]), followed by scaling and root planing of sites with a PD of ≥5 mm, performed under local anaesthesia (Ultracain©) with Gracey curettes (Hu-Friedy).
Surgical procedure
Three months after the initial nonsurgical periodontal therapy, patients were invited for a follow-up appointment. Interproximal sites with PD ≥ 5 mm and CAL ≥ 6 mm and associated intrabony defects were selected for the study (Figures 1, 2 and 3a) (Sanz et al., 2020).
[Figure 1: Representative case from the control group, treated with EPP and xenogeneic bone mix. (a) Baseline measurement, (b) single vertical incision, (c) reflection of a small mucoperiosteal flap, (d) granulation tissue removal, (e) application of the standard slow-resorbing bone substitute, (f) suturing, (g) healing after 1 week, (h) measurement after 1 year, (i) baseline radiograph, (j) 1-year radiograph. EPP, entire papilla preservation technique.]
[Figure 2: Representative case from the test group, treated with NIPSA and pre-hydrated collagenated bone mix. (a) Baseline measurement, (b) single horizontal incision, (c) inter-dental tunnel preparation, (d) granulation tissue removal, (e) application of material, (f) primary closure of surgical area, (g) healing after 1 week, (h) measurement after 1 year, (i) baseline radiograph, (j) 1-year radiograph. NIPSA, nonincised papillae surgical approach.]
[Figure 3: Representative case from the control group, treated with NIPSA and xenogeneic bone mix. (a) Baseline measurement, (b) single horizontal incision, (c) reflection of a small mucoperiosteal flap, (d) granulation tissue removal, (e) application of the standard slow-resorbing bone substitute, (f) suturing, (g) healing after one week, (h) measurement after one year, (i) baseline radiograph, (j) one year radiograph. NIPSA, nonincised papillae surgical approach.]
Twenty surgical treatments were performed by a single resident of periodontology (T. K.). Surgical incisions were chosen to protect the integrity of the interdental papillae and to take anatomical factors into account. In this regard, defects associated with incisors and canines were accessed using NIPSA (n = 11) (Aslan et al., 2017), whereas EPP was performed at defects associated with premolars or molars (n = 9) (Moreno Rodriguez & Caffesse, 2018).
After administration of local anaesthetic (Ultracain©), an intracrevicular incision was made around the teeth affected by the defect. Then, either a short vertical incision was made in the buccal gingiva just beyond the mucogingival line as part of EPP (Figure 1b) (Aslan et al., 2017) or a single horizontal apical incision was made in the mucosa apically to the edge of the bony ridge bordering the defect as part of NIPSA (Figures 2b and 3b) (Moreno Rodriguez & Caffesse, 2018). After elevation of a buccal, mucoperiosteal, full-thickness flap, a tunnelling instrument was used to undermine a tunnel preparation at the defect-associated papilla (Figures 1, 2 and 3c).
The granulation tissue was excised using microsurgical scissors and a tiny curette (Micro Mini Five Gracey Curette; Hu Friedy) (Figures 1, 2, 3d). The exposed root surface was cleaned with an ultrasonic scaler (NSK Varios 980; NSK Dental), and a small curette was used to remove subgingival calculus or plaque. The surgical site was carefully cleaned with sterile saline, and the treatment was continued according to the random assignment protocol.
In the test group (n = 10), a pre-hydrated collagen-containing corticocellular heterologous bone gel (OsteoBiol® Gel 40; granulometry up to 300 μm) was applied to the exposed root surface using a syringe (Figure 2e). In the control group (n = 10), the intraosseous defect was filled with the patient’s blood-soaked collagenous corticocellular xenogeneic bone graft (Figures 1e and 3e) (OsteoBiol® Gen-Os; granulometry from 250 to 1000 μm).
During application, contamination of the root surface with saliva was prevented by relative isolation. Microsurgical suture techniques with 6–0 or 7–0 monofilament sutures (Prolene; Ethicon) were used for WC (Figures 1, 2 and 3f), and gentle pressure was applied to the surgical site with saline-moistened gauze for 1 min after completion of surgery for mucoperiosteal flap adaptation.
Patients were instructed to refrain from oral hygiene in the surgical area for 3 weeks and instead rinse twice daily with 0.12% chlorhexidine digluconate (Curasept; Curaprox). One week after surgery, patients were asked to report side effects and problems (Figures 1, 2 and 3g). Sutures were removed 2 weeks after the procedure.
As part of the maintenance protocol, T. K. performed a professional dental cleaning on each patient every 3 months for the next 12 months.
Clinical parameters
Three months after the initial periodontal treatment and 1 year after the surgical intervention, clinical periodontal parameters were recorded (Figures 1, 2 and 3h). All clinical measurements at baseline and 1 year were performed with a manual Williams probe (POW6; Hu-Friedy) by the same experienced investigator who was blinded to the assignment to the research group (R. G.).
A calibration exercise with measurements repeated after 1 week yielded intraclass correlation coefficients for PD and CAL above 0.9 and ϰ values for PlI, and bleeding on probing (BOP) above 0.95, indicating excellent reproducibility.
FMPS and FMBS were recorded at baseline. PD and gingival recession (REC) at the deepest part of the experimental area were rounded to the nearest millimetre (POW6; Hu-Friedy). CAL was calculated by adding the values of PD and REC. In addition, BOP was scored using a binary scale, with scoring performed 15 s after probing. During the procedure, the intraosseous component (INTRA), that is, the distance between the bone crest and the deepest part of the bony defect, and the intraosseous component with three walls (3W) were measured.
Intraoral photographs were used to determine the location of the papillae (TP) for comparison of the initial and final conditions. The manual Williams probe was used to calibrate the scale, and the position TP was measured relative to the incisal edge of the adjacent tooth (ImageJ; NIH). Each measurement was taken three times and then averaged to obtain a single value.
Primary surgical site closure was assessed after 2 weeks and characterized as either complete WC = 2, incomplete closure with a fibrin cloth (WC = 1), or biomaterial exposure (WC = 0) (Table 3). Radiographic images at baseline (Figures 1, 2 and 3) and one year after therapy (Figures 1, 2 and 3j) were used for radiological analysis.
Distances were determined by projecting three reference points onto a straight line constructed along the long axis of the tooth: the enamel–cement interface, the most apical point of the defect (before and after treatment), and the apex of the tooth. The change in radiographic bone height as a function of root length was then calculated. The radiographic periodontal defect angle was also measured (Cortellini & Tonetti, 2011).
Sample size and randomisation
Sample size was determined using CAL gain as the primary outcome. A difference of 1.5 mm in CAL gain was assumed to be clinically significant (Aslan et al., 2020); expected variation was set at 1.1 mm (Cortellini & Tonetti, 2011). With α = 0.05 and power of 80%, the calculated sample size was 20 surgical sites (10 per group).
The selected single intraosseous defect of each patient was randomly assigned to one of the two biomaterials. Numbered and opaque sealed envelopes were used to conceal the assignment. The random sequence was generated using a computer-generated randomisation table. The opaque sealed envelopes were opened immediately after defect debridement, and the operator was informed of the biomaterial allocation (T. K.). The investigator (R. G.) remained blind throughout the study.
Noninferiority margin
The noninferiority of the test intervention was determined using a minimum standardised difference detectable in this study (d) as the margin, with the equivalence interval between −d and d. Considering the sizes of both groups, it was calculated that an expected effect size of d = 1.32 could be detected with 80% power and 5% significance level (Cohen, 2013).
In accordance with the fixed margin approach, a size equal to the expected effect size of the active comparator was chosen as the margin (M = 1.32) to ensure the efficacy of the new treatment. For each outcome, noninferiority was demonstrated if the CI was completely above the lower margin of the equivalence interval, −d.
Statistical analysis
Demographic variables were described as means with standard deviations (SD) or counts and proportions (%), as appropriate. Outcome variables were changes in CAL gain (diffCAL), PD (diffPD), REC (diffREC), and TP (diffTP). Data were reported as mean values (SD) for each group.
Cross-group comparisons were performed as univariate analyses. p Values were determined using the two-tailed independent t-test with Welch correction. The standardised mean difference by Cohen’s d and its CI were calculated for all outcomes as effect sizes for the efficacy of the main exposure compared with the gold standard. Analysis was performed using R statistical software, version 4.2.1, at α = 0.05.
RESULTS
Twenty of the 83 examined patients were selected as participants for this study. Ten participants were randomly assigned to each group, and all were regularly recalled until the 1-year follow-up. Data from all 20 participants were included in the final analysis (Figure 4).
[Figure 4: Consort flow diagram.]
Study population and clinical characteristics
A total of 20 subjects participated in the study, of whom 12 (60%) were women. The mean age (SD) of the study participants was 53 (9) years. The test and control groups did not differ in any of the baseline clinical parameters.
Clinical outcome change distribution
The distribution density of the change in outcome levels is shown in Figure 5. The centre of change of CAL was slightly higher in the test group than in the control group, but the variability in the control group was much greater, as can be seen from the width of the distribution, and with a strong tail toward higher values.
The distribution of diffCAL in the test group appears to be bimodal, although its shape appears to be more clearly defined, with less variability around the centre. This could be due to a larger number of participants being in the lower range of diffREC compared with the control group. The diffPD distribution appears to be slightly bimodal in the test group; the average change was higher than in the control group, but this could be due to the small sample size.
The diffREC distribution has similar average values in both groups, but as mentioned earlier, the test group has a stronger tail in the lower part of the data. The distributions of diffTP in both groups appear to be similar in centre, width, and shape.

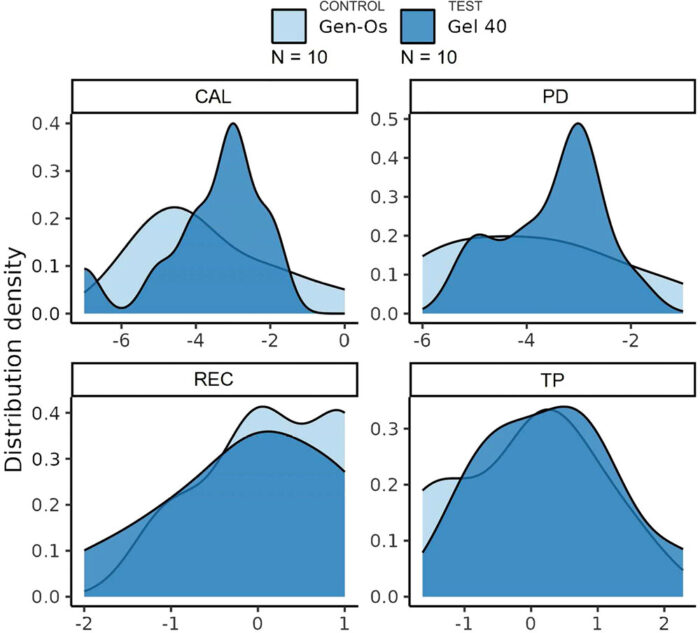

[Fig 5: Density distribution of changes in study outcomes. CAL, clinical attachment loss; PD, probing depth; REC, gingival recession; TP, location of papilla.]
Inferential analysis
After one week, complete WC was observed in almost all cases; only one case in the control group and three cases in the test group healed with fibrin cloth covering (N. S.). Exposure of the biomaterial never occurred (Table 2). The difference in changes in outcomes after 12 months of healing for both interventions is shown in Table 3. The mean (SD) diffCAL was −3.6 (1.5) mm in the test group and −3.7 (1.8) mm in the control group (p = 0.895). This corresponds to a standardised mean difference of d = −0.06 (95% CI: −0.94 to 0.82). The standardised effect of treatment on change was d = 0.33 (95% CI: −0.55 to 1.20) for diffREC, d = −0.29 (95% CI: −1.20 to 0.59) for diffPD, and d = −0.38 (95% CI: −1.30 to 0.51) for diffTP. Noninferiority was defined for this analysis by the lower range of the 95% CI being greater than d = 1.32. All results met this criterion; the noninferiority of the tested material was within the limits of the sample. In addition, bone fill of the test group (51%) was not significantly lower than that of the control group (53%) (p = 0.580).
DISCUSSION
The aim of the present study was to compare the efficacy of healing of intrabony periodontal defects filled with two different biomaterials, porcine-origin collagenated cortico-cancellous xenogeneic particulate bone substitute and cortico-cancellous heterologous bone gel, in conjunction with papilla preservation procedures.
In contrast to standard superiority studies (Tu et al., 2006), our study was designed as a noninferiority study, with the null hypothesis stating that the change in CAL, PD, REC, and TP between baseline and the 12-month follow-up would not be worse after defect filling with bone gel as compared to a solid particulate bone substitute. Both biomaterials were found to be effective, with the bone gel tested being noninferior in all primary and secondary clinical outcomes one year after surgery.
To our knowledge, this is the first noninferiority study to evaluate the clinical outcomes of pre-hydrated collagenated bone gel versus collagenated xenogeneic bone granules applied to periodontal defects. However, since no histomorphometric evaluation was performed, it remains unclear to what extent the application of each material affects the soft-to-hard tissue ratio and the regeneration of the periodontal structure.
Compared with deproteinised bovine bone mineral, which is known to be the most used xenogeneic bone material, the investigated porcine bone xenograft was subjected to a lower temperature treatment (up to 130°C), which made it possible to preserve its structure and composition of collagen and hydroxyapatite.
The procedure resulted in a decrease in total porosity (33%), interparticle porosity (21%), and mineral content (65%) compared to standard bovine bone, deproteinised with strong alkalis and organic solvents and treated at a higher temperature of 300°C (total porosity 64%, interparticle porosity 51%, and mineral content 95%).
This probably led to a faster remodelling process (Miyauchi et al., 2022) and a higher amount of new bone formation (Lim et al., 2023). For this reason, dual phase xenogeneic bone matrix substitutes containing a xenogeneic mineral bone phase, and an organic collagen phase represent a gradually resorbable biomaterial for bone and periodontal ligament regeneration.
They provide an osteoconductive matrix for new bone growth, while their collagen content acts as a chemoattractant, stimulates the recruitment of mesenchymal stem cells, and promotes early angiogenesis. Pre-hydration of the collagen-containing material improves its handling properties, resulting in bone gel consistency. Although the use of pre-hydrated heterologous bone gel in the treatment of critical size bone defects in rabbit femurs failed to support complete regeneration, the product has not yet been evaluated for periodontal regeneration applications (Falacho et al., 2021).
It is not yet known whether dual phase collagen-containing xenografts can promote periodontal regeneration more effectively than the commonly used pure deproteinised bovine bone minerals, β-tricalcium phosphate, or hydroxyapatite, although porcine bone with a collagen matrix induced a greater amount of new bone growth compared to the deproteinised bovine bone mineral in animal studies (Lim et al., 2023). This regenerative ability could be similar to that of demineralised freeze-dried bone allografts or freeze-dried bone allograft materials, which are not approved in Europe due to regulatory concerns.
Although there is a lack of comparative studies in periodontology, collagenised bone grafts appear to show increased remodelling and decreased graft stability when used as a filling material in sinus lifts (Miyauchi et al., 2022). However, they do not show inferior performance in maintaining the alveolar ridge after socket sealing (Fukuba et al., 2021).
In our study, participants received nonsurgical periodontal therapy of the entire dentition, including sites targeted for regenerative procedures, three months before surgical intervention.
Our protocol differed from the originally described EPP or NIPSA protocols (Moreno Rodriguez & Caffesse, 2018; Moreno Rodríguez et al., 2019), in which the sites associated with the defects to be regenerated were treated two to three weeks before surgery by instrumenting only the exposed root surface and the first millimetres of the periodontal pocket (marginal periodontal pocket area).
The authors of the original EPP and NIPSA descriptions strictly discouraged conventional scaling and root planing to the bottom of the pocket to preserve any residual fibres, avoid inadvertent curettage, and prevent possible tissue shrinkage. Therefore, the deepest portion of the biofilm-covered root surface was originally intended to remain untouched.
Consequently, scaling and root planing to the bottom of the periodontal pockets in our protocol resulted in shallower periodontal defects (7.8 mm) when compared with studies in which only gentle manipulation of the affected area was performed before surgery (9.6 mm) (Moreno Rodríguez et al., 2019). This may be a partial explanation for the poorer clinical results we obtained in terms of reduction of PD and clinical attachment gain after surgery compared with the results reported by the original authors of the EPP and NIPSA procedures.
We assumed that EPP and NIPSA procedures had the same effect, and that the therapeutic outcome was independent of surgical technique. In an additional sub-analysis, the results of both procedures were compared (results not shown). It was found that the assessment of treatment outcomes based on the same four parameters was not influenced by the specific surgical procedure. Nonetheless, both surgical modalities provided excellent WC throughout the early healing phase and prevented any biomaterial exposure in both the test and control groups. We believe that NIPSA is clearly not suitable for the posterior regions because of several anatomic limitations, such as the exit of the mental nerve, a shallow vestibule, and a short band of keratinised mucosa. Therefore, EPP was used for all surgeries in the premolar and molar regions.
However, when the study protocol was proposed, final data on the excellent aesthetics of the EPP were not yet available. Therefore, all incisors and canines were treated with NIPSA to avoid scarring. However, later studies have proven that the vertical incision placed away from the bony defect showed impressive healing when sutured, resulting in a high degree of flap integrity during EPP and providing an excellent aesthetic outcome (Aslan et al., 2020). Nevertheless, the assumption that the treatment results of the two procedures are equivalent may be incorrect, which is a major limitation of our study.
Another limitation of our study is the lack of a control group without biomaterial. In two recent RCCT studies investigating surgical techniques with and without bone graft substitute, it was found that the addition of bone graft substitute did not improve the clinical attachment gain (Aslan et al., 2020; Moreno Rodríguez & Ortiz Ruiz, 2022). On the other hand, the addition of a bone substitute material improved the stability of the interdental papillae (Moreno Rodríguez & Ortiz Ruiz, 2022), which was also found in our study.
Preservation of the interdental papillae is of great importance in achieving a desirable aesthetic result in the anterior region. In addition, the presence of the interdental papilla in the posterior region facilitates the feasibility of interdental care techniques by properly closing the interdental space. The absence of significant differences in the position of the papilla tip between the two groups suggests that the preservation of the interdental tissue was well achieved even when a gel-based bone substitute was used. However, further clinical studies with more specific indications are needed to answer all open questions.
CONCLUSION
Our results suggest that the use of pre-hydrated collagen cortico-cancellous bone gel in conjunction with papilla-preserving procedures (EPP or NIPSA) results in a comparable reduction in PD and clinical attachment gain and is associated with similar, albeit minor, gingival recession as conventional slowly resorbable solid particulate bone graft substitutes.
First published 06 February 2024: https://doi.org/10.1002/cre2.853
References:
Aslan, S., Buduneli, N., & Cortellini, P. (2017). Entire papilla preservation technique: A novel surgical approach for regenerative treatment of deep and wide intrabony defects. The International Journal of Periodontics & Restorative Dentistry, 37(2), 227–233.
Aslan, S., Buduneli, N., & Cortellini, P. (2020). Clinical outcomes of the entire papilla preservation technique with and without biomaterials in the treatment of isolated intrabony defects: A randomized controlled clinical trial. Journal of Clinical Periodontology, 47(4), 470–478.
Aslan, S., Buduneli, N., & Cortellini, P. (2021). Reconstructive surgical treatment of isolated deep intrabony defects with guided tissue regeneration using entire papilla preservation technique: A prospective case series. Journal of Periodontology, 92(4), 488–495.
Cohen, J. (2013). Statistical power analysis for the behavioral sciences. Routledge.
Cortellini, P., & Tonetti, M. S. (2011). Clinical and radiographic outcomes of the modified minimally invasive surgical technique with and without regenerative materials: A randomized-controlled trial in intra-bony defects. Journal of Clinical Periodontology, 38(4), 365–373. https://pubmed.ncbi.nlm.nih.gov/21303402/
Cortellini, P., Tonetti, M. S., Lang, N. P., Suvan, J. E., Zucchelli, G., Vangsted, T., Silvestri, M., Rossi, R., McClain, P., Fonzar, A., Dubravec, D., & Adriaens, P. (2001). The simplified papilla preservation flap in the regenerative treatment of deep intrabony defects: Clinical outcomes and postoperative morbidity. Journal of Periodontology, 72(12), 1702–1712.
Falacho, R. I., Palma, P. J., Marques, J. A., Figueiredo, M. H., Caramelo, F., Dias, I., Viegas, C., & Guerra, F. (2021). Collagenated porcine heterologous bone grafts: Histomorphometric evaluation of bone formation using different physical forms in a rabbit cancellous bone model. Molecules, 26(5), 1339. https://www.mdpi.com/1420-3049/26/5/1339/htm
Fukuba, S., Okada, M., Nohara, K., & Iwata, T. (2021). Alloplastic bone substitutes for periodontal and bone regeneration in dentistry: Current status and prospects. Materials, 14(5), 1096. https://pubmed.ncbi.nlm.nih.gov/33652888/
Herrera, D., Sanz, M., Kebschull, M., Jepsen, S., Sculean, A., Berglundh, T., Papapanou, P. N., Chapple, I., Tonetti, M. S., & Aimetti, M. (2022). Treatment of stage IV periodontitis: The EFP S3 level clinical practice guideline. Journal of Clinical Periodontology, 49(S24), 4–71.
Kao, R. T., Nares, S., & Reynolds, M. A. (2015). Periodontal regeneration: Intrabony defects: A systematic review from the AAP regeneration workshop. Journal of Periodontology, 86(2–s), S77–S104.
Lim, H.-C., Paeng, K.-W., Jung, U.-W., & Benic, G. I. (2023). Vertical bone augmentation using collagenated or non-collagenated bone substitute materials with or without recombinant human bone morphogenetic protein-2 in a rabbit calvarial model. Journal of Periodontal & Implant Science, 53(6), 429–443. https://doi.org/10.5051/jpis.2204240212
Al Machot, E., Hoffmann, T., Lorenz, K., Khalili, I., & Noack, B. (2014). Clinical outcomes after treatment of periodontal intrabony defects with nanocrystalline hydroxyapatite (Ostim) or enamel matrix derivatives (Emdogain): A randomized controlled clinical trial. BioMed Research International, 2014, 1–9.
Miyauchi, Y., Izutani, T., Teranishi, Y., Iida, T., Nakajima, Y., Xavier, S. P., & Baba, S. (2022). Healing patterns of non-collagenated bovine and collagenated porcine xenografts used for sinus floor elevation: A histological study in rabbits. Journal of Functional Biomaterials, 13, 276. https://www.mdpi.com/2079-4983/13/4/276/htm
Moreno Rodriguez, J., & Caffesse, R. (2018). Nonincised papillae surgical approach (NIPSA) in periodontal regeneration: Preliminary results of a case series. The International Journal of Periodontics & Restorative Dentistry, 38(Suppl.), s105–s111. https://pubmed.ncbi.nlm.nih.gov/30118534/
Moreno Rodríguez, J. A., & Ortiz Ruiz, A. J. (2022). Apical approach in periodontal reconstructive surgery with enamel matrix derivate and enamel matrix derivate plus bone substitutes: A randomized, controlled clinical trial. Clinical Oral Investigations, 26(3), 2793–2805.
Moreno Rodríguez, J. A., Ortiz Ruiz, A. J., & Caffesse, R. G. (2019). Periodontal reconstructive surgery of deep intraosseous defects using an apical approach. Non-incised papillae surgical approach (NIPSA): A retrospective cohort study. Journal of Periodontology, 90(5), 454–464.
Nieri, M., Muzzi, L., Cattabriga, M., Rotundo, R., Cairo, F., & Prato, G. P. P. (2002). The prognostic value of several periodontal factors measured as radiographic bone level variation: A 10-year retrospective multilevel analysis of treated and maintained periodontal patients. Journal of Periodontology, 73(12), Papapanou, P. N., Sanz, M., Buduneli, N., Dietrich, T., Feres, M., Fine, D. H., Flemmig, T. F., Garcia, R., Giannobile, W. V., Graziani, F., Greenwell, H., Herrera, D., Kao, R. T., Kebschull, M., Kinane, D. F., Kirkwood, K. L., Kocher, T., Kornman, K. S., Kumar, P. S., … Tonetti, M. S. (2018). Periodontitis: Consensus report of workgroup 2 of the 2017 world workshop on the classification of periodontal and peri-implant diseases and conditions. Journal of Clinical Periodontology, 45, S162–S170.
Papapanou, P. N., & Tonetti, M. S. (2000). Diagnosis and epidemiology of periodontal osseous lesions. Periodontology 2000, 22(1), 8–21.
Pei, X. (2021). New surgery approaches preserving entire papilla to treat isolated interdental intrabony defects: A narrative review. Clinical and Experimental Dental Research, 7(5), 719–725.
Sanz, M., Herrera, D., Kebschull, M., Chapple, I., Jepsen, S., Berglundh, T., Sculean, A., & Tonetti, M. S., EFP Workshop Participants and Methodological Consultants. (2020). Treatment of stage I-III periodontitis: The EFP S3 level clinical practice guideline. Journal of Clinical Periodontology, 47(Suppl. 22), 4–60.
Tonetti, M. S., Greenwell, H., & Kornman, K. S. (2018). Staging and grading of periodontitis: Framework and proposal of a new classification and case definition. Journal of Periodontology, 89, S159–S172.
Tu, Y.-K., Maddick, I., Kellett, M., Clerehugh, V., & Gilthorpe, M. S. (2006). Evaluating the quality of active-control trials in periodontal research. Journal of Clinical Periodontology, 33(2), 151–156.
